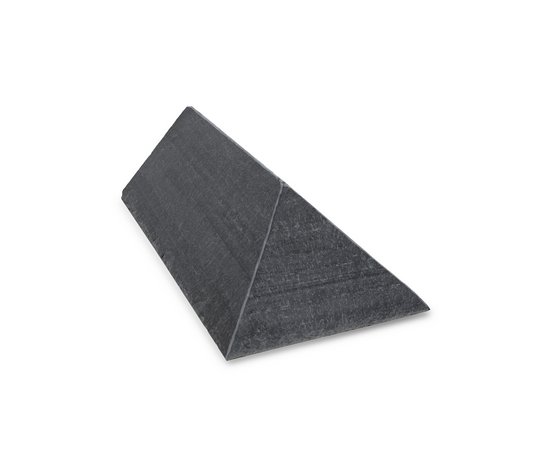

Mayan Natural Slate Overlap RealRidge Hip Cap
Overlap style dry-fix ridge and hip system with ventilation void and hidden fixings, for a high end appearance with a stepped look, ideal for a hipped roof, available in a huge variety of angles and finishes.
75°: Suitable for special roofs with a pitch up to 45 degrees
90°: From 37.5 up to 45 degrees
105°: From 30 up to 37.5 degrees
120°: From 22.5 up to 30 degrees
135°: Suitable for special roofs with a pitch up to 22.5 degrees
150°: Specialist ridge for low pitch applications, hexagonal roofs, bay window turrets etc.
The Mayan OverLap RealRidge system is a one-of-a-kind, modern ridge solution for slate roofing. Using the unique, patented dry-fix overlapping connector system is easy to insatal and conceals all fixings to give an outstanding, sleek, modern yet natural look to the roof. Conforms to the requriement for high level ventilation BS5250 and as per NHBC standard 7.2. Compliant with BS 5534 ands BS 8612.
Lap may be increased to align with slate coursing for a preferred aesthetic (one per course on hip). The simplest and fastest way to install the perfect, natural slate Overlap ridge and hip.
Minimum overlap is 125mm above 35º roof pitch.
Minimum overlap is 150mm below 35º roof pitch.
Features:
- Traditional overlap appearance – natural slate
- Hidden fixing screws (provided) Fast and simple installation
- Natural venting void – no need for roll out – (6000mm2 ) continuous free air ventilation
- Dry fix overlap system – holes pre-drilled
- Durable re-enforced natural slate
Full suite of accesories including pre-formed ridge cap
Slate | Premium Phyllite grey roofing slate / 9mm thick with a Natural Edge and riven surface |
---|---|

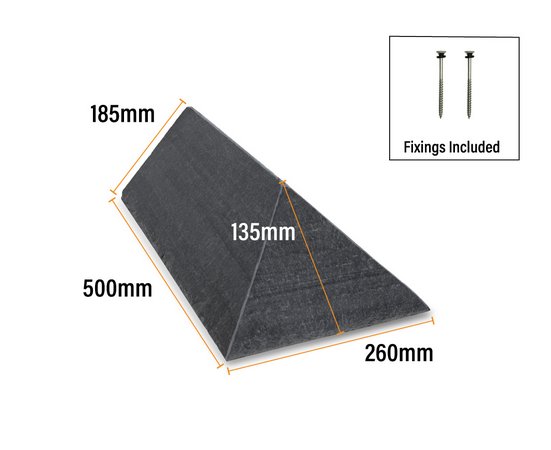

Size | 500mm long (350mm minimum cover length) / 185mm wing length (top slate cover) |
Angle | 90º, 105º, 120º |
